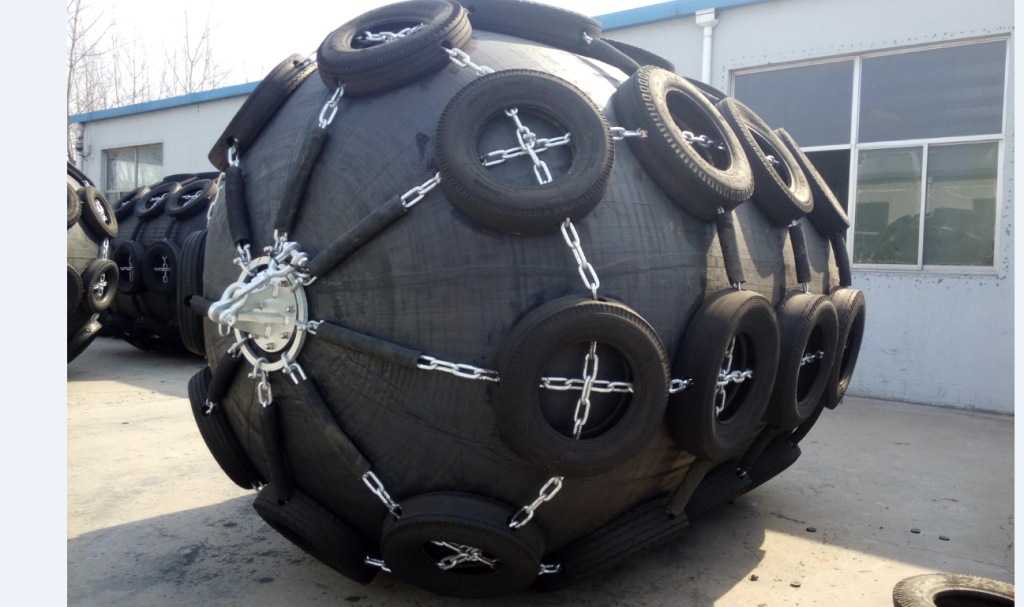

1、 Ship Anti-collision inflatable Pneumatic Defenses product introduction
Inflatable Pneumatic Defenses are a kind of marine products that play a role in buffering and protecting ships. In recent years, with the continuous development and growth of the shipbuilding industry, this defense has been widely used in ocean transportation vessels, offshore facilities, offshore platforms, port terminals, and yachts.
It is a rubber sealed container made of rubber material made of hanging rubber cord fabric. It can keep afloat above the water surface after it is filled with compressed air. It can be used as an important cushioning medium for berthing of ships and ships and berthing between ship and bow. At the same time, the Pneumatic Defense can absorb the impact energy of the ship's movement, reduce the recoil force of the ship, and greatly improve the safety of the docking of the ship.
2.Suntech Plus’s Pneumatic Defense advantage:
Suntech Plus's Pneumatic Defense is favored by major shipyards and ship owners both at domestic and abroad due to superior quality.Raw materials: Made of high-quality natural rubber and ductile nylon cord fabric, the capacity of a single thread reaches its maximum.
Hanging plastic: high-quality plastic materials, advanced equipment, the thickness of the tire fabric after the plastic coating is uniform
3. Product Standard Model:
|
Model |
Initial Inner Pressure |
Absorb Energy GEA(kJ) |
Reaction Force R((kN)) |
|
Diameter×Length(m) |
(Kpa) |
Compression deformation 60±5% |
Tolerance Range ±10% |
|
0.5×1.0 |
50 |
6 |
64 |
|
0.6×1.0 |
50 |
8 |
74 |
|
0.7×1.5 |
50 |
17 |
137 |
|
1.0×1.5 |
50 |
32 |
182 |
|
1.0×2.0 |
50 |
45 |
257 |
|
1.2×2.0 |
50 |
63 |
297 |
|
1.35×2.5 |
50 |
102 |
427 |
|
1.5×3.0 |
50 |
153 |
597 |
|
1.7×3.0 |
50 |
191 |
639 |
|
2.0×3.5 |
50 |
308 |
875 |
|
2.5×4.0 |
50 |
663 |
1381 |
|
2.5×5.5 |
50 |
943 |
2019 |
|
3.0×5.0 |
50 |
1210 |
2104 |
|
3.0×6.0 |
50 |
1485 |
2583 |
|
3.3×4.5 |
50 |
1175 |
1884 |
|
3.3×6.0 |
50 |
1675 |
2783 |
|
3.3×6.5 |
50 |
1814 |
3015 |
|
3.3×10.6 |
50 |
3067 |
5257 |
|
4.5×9.0 |
50 |
4752 |
5747 |
|
4.5×12.0 |
50 |
6473 |
7984 |
